Op voorraad
Prijsklasse: €6.147,80 tot €6.564,60

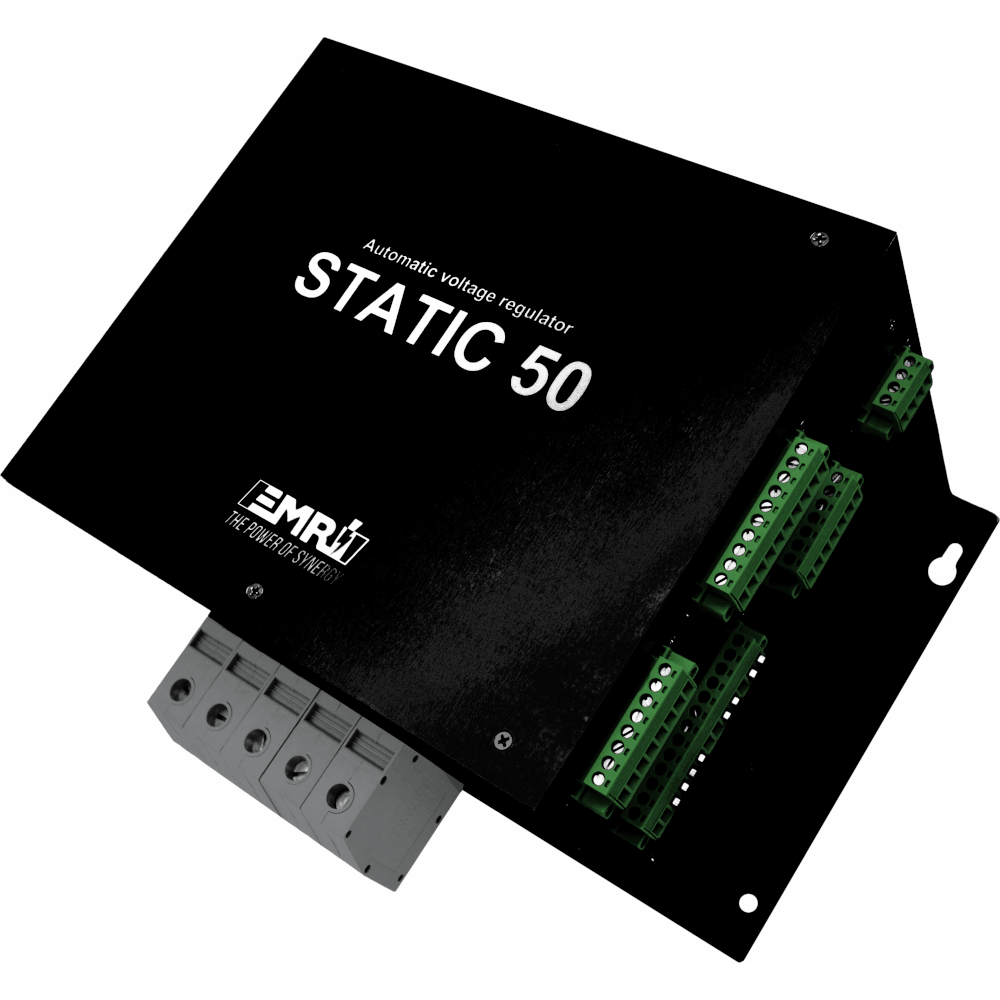

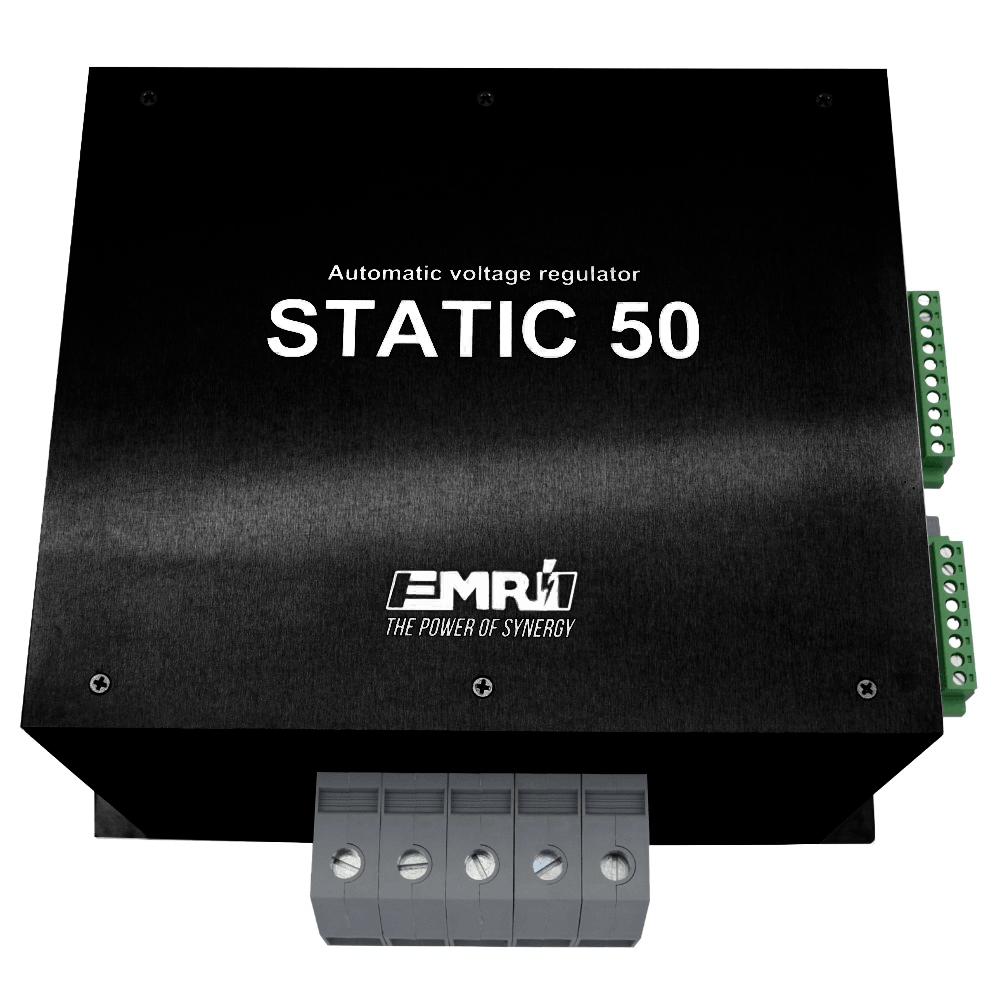

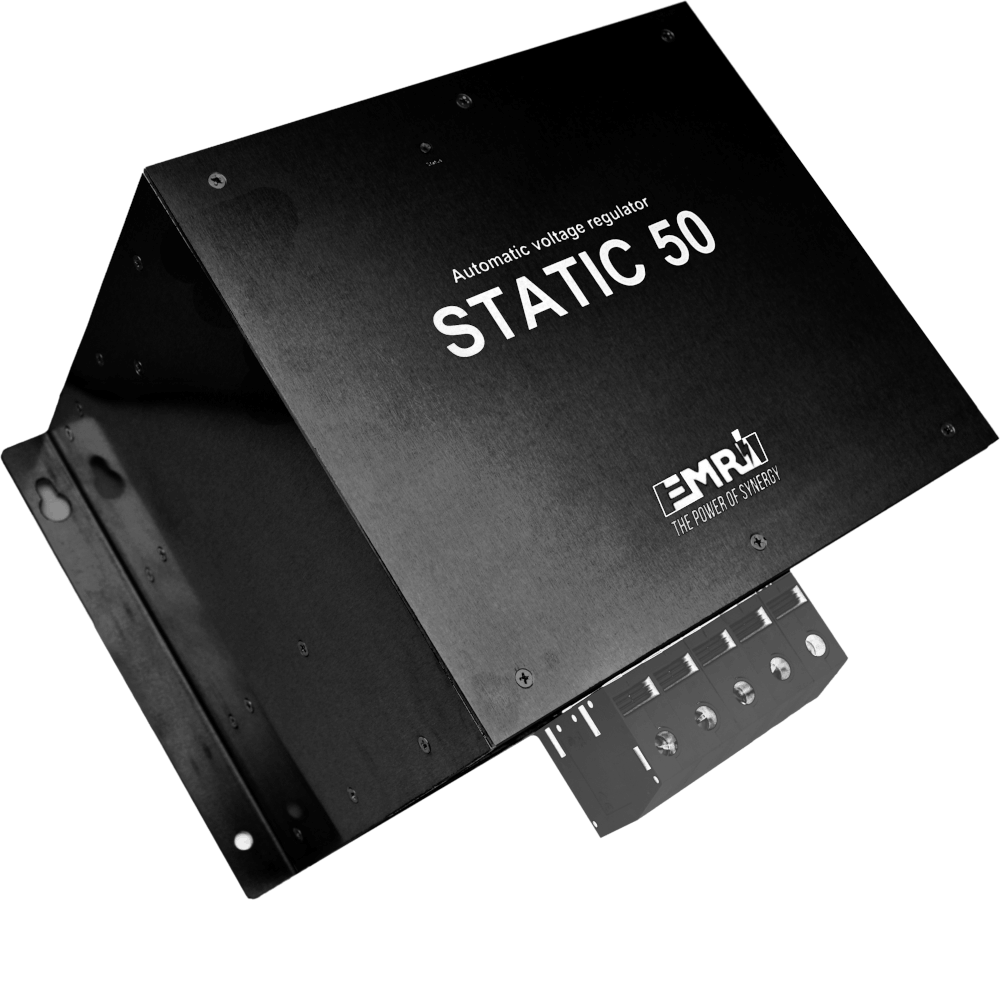

These 1-phase STATIC voltage regulators are original EMRI products. The EMRI STATIC 50 – 150 voltage regulators are suitable for most generators, regardless of excitation current. The voltage regulator consists of a control unit and a power stage. Thanks to its modular construction, the regulator can be configured with different output power ratings ranging from 50A up to 150A excitation current. The STATIC regulator series is designed as a modern replacement for a wide range of legacy EMRI and Jeumont Schneider regulator systems. Available in four dedicated versions (A, B, C and D), the STATIC regulator provides a straightforward replacement solution for both standard generator applications and specialized excitation systems.
| Version | Replacement for | Typical application |
|---|---|---|
| STATIC-A | EMRI ASR20, EMRI ASR35 | Standard AVR application with Phase-to-Neutral sensing. Most commonly used version. |
| STATIC-B | EMRI NOZERO35 | Generators without Neutral connection. Phase-to-phase sensing only. |
| STATIC-C | EMRI ETCA | Forward regulation systems. Compatible with Jeumont Schneider ETCA and ERTS systems. |
| STATIC-D | EMRI ESCA, RS630, ESCRT | Reverse regulation systems. Compatible with Jeumont Schneider ESCA, ESCRS, ESCRT and ERTCR systems. |
| Gewicht | N/B |
|---|---|
| Afmetingen | 50 × 50 × 60 mm |
| Brand | EMRI |
| Origin Country | Made in EU |
| Maximum Current | 50A, 150A, 250A, 350A |
| SKU | REGELSTATIC50-1 |
| SKU | REGELSTATIC150-1 |
